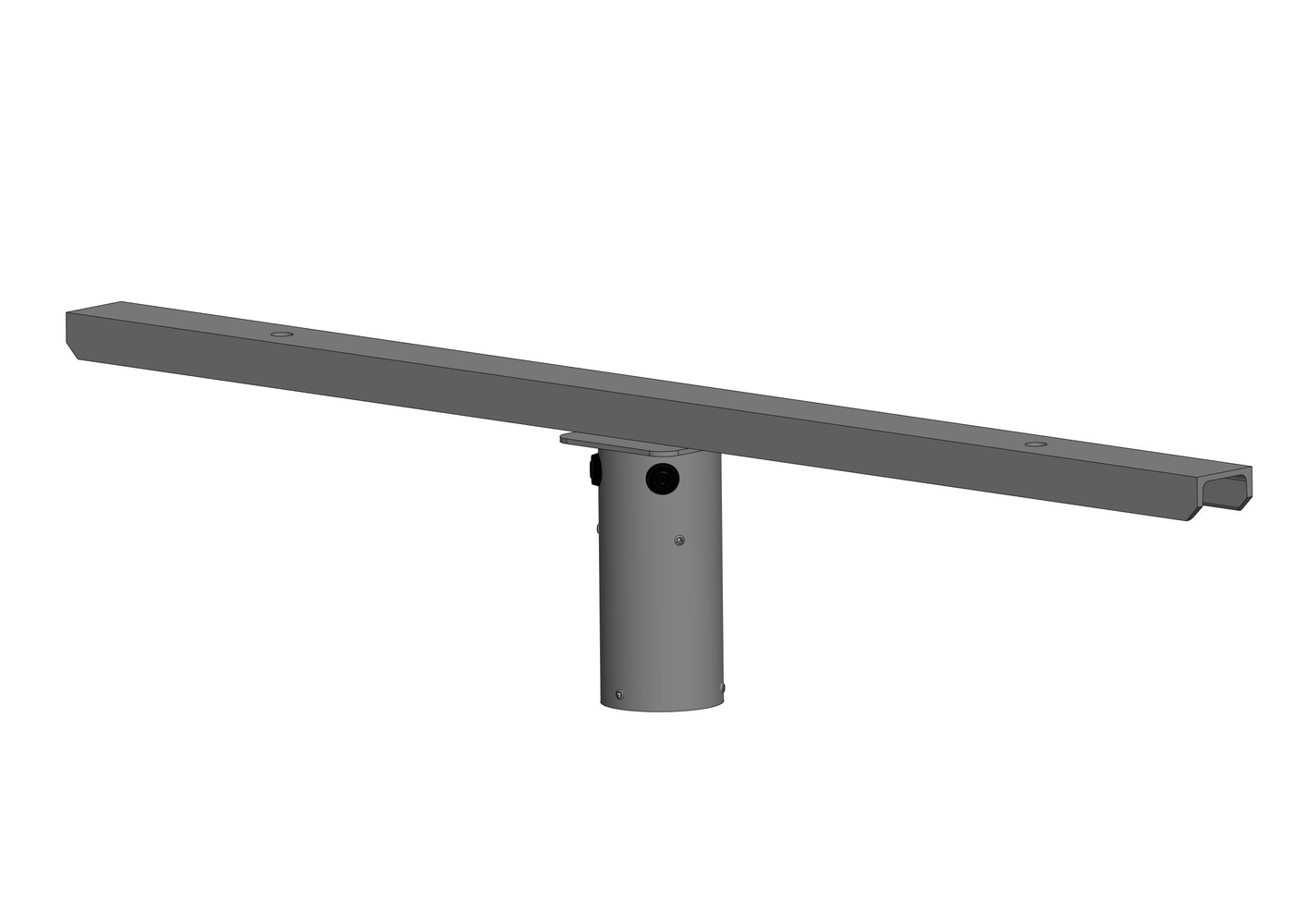

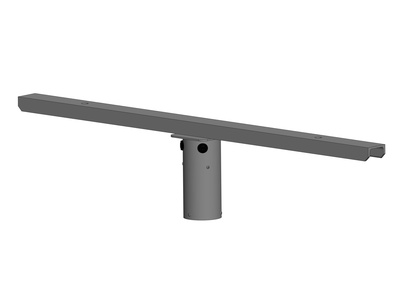

Brackets for floodlight masts

For mounting floodlights





Design:

  • Made from high quality steel tubes
  • Suitable for mounting floodlights
  • Membrane inlet for keell 5 - 9 mm
  • Attached to mast spigot with stainless steel locking screws
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible

Application:

For mounting floodlights

Type  Headlights Mast spigot Console width Weight (kg)
K1-130 1 130 500 8,4
K2-130 2 130 1500 20,6
K3-130 3 130 2400 26,4
K4-130 4 130 1600 22,3
K5-130 5 130 2400 31,0
K3-150 3 150 2400 26,4
K4-150 4 150 1600 25,0
K5-150 5 150 2400 33,0
K3-180 3 180 2400 36,8
K4-180 4 180 2500 49,3
K5-180 5 180 2500 49,3
