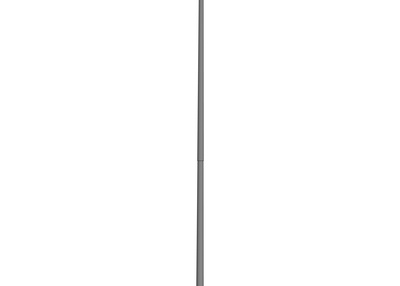

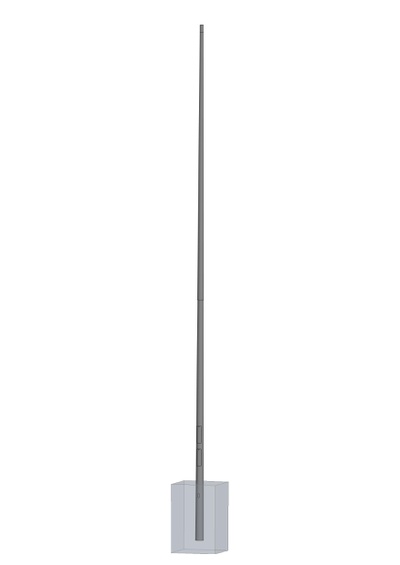

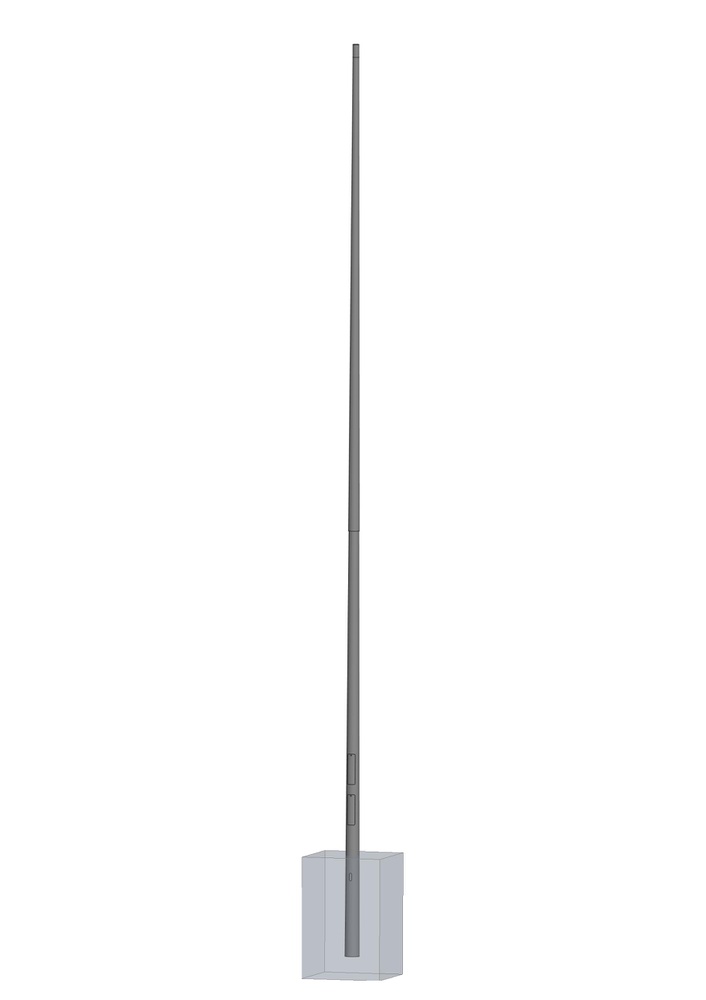

Floodlight mast 12,0 m

This floodlight mast is manufactured from high quality round steel tubing and is hot-dip galvanised inside and outside.

The floodlight masts are equipped with a flush-mounted mast door with an internal device bridge for the mast fuse box and an internal earthing connection. From a height of 14 metres, conical lightning poles are supplied in two parts and are easy to connect using a push-fit joint. Each tubular steel mast is individually designed for your installation site. This floodlight pole is weather-resistant thanks to its hot-dip galvanisation and can be coated in RAL or DB colors on request.

As the manufacturer, Fonatsch GmbH is in possession of all necessary quality certificates.

Light point height:

12,0 m

Design:

  • Made from high quality conical round steel tubes
  • Flush-mounted mast door 400 x 85 mm with internal device bridge for cable junction box and ballast
  • Door lock with stainless steel screw M8/A2
  • Internal earth connection with M8/A2 stainless steel screw
  • Double cable entry, 180° offset, 150 x 50 mm
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible
  • Version with flange plate and anchor basket available on request

Riser system:

These masts can optionally be equipped with climbing rungs and fall protection rope as a climbing system

Application:

For lighting sports facilities and large areas

Static design:

Static design depending on floodlight type, number of floodlights, floodlight inclination and installation location

Type LPH (m) E (m) D1 (mm) D2 (mm) mast doors Door size
(mm)
Weight (kg) Technical
drawing
K120-108 12,0 1,5 243 108 1 400 x 85 232 PDF
