Poles with circular curved bracket | Cylindrically stepped

This stable whip mast is constructed from high quality steel tubing, cylindrically offset with conical transitions, then hot-dip galvanized inside and outside.

These poles are equipped with a flush-mounted mast door with an internal device bridge for the mast fuse box and an internal earthing connection. The pole is supplied in two parts and can be easily connected using the patented pole coupler. Each tubular steel pole is individually designed for your installation site. This lightning pole is suitable for almost all commercially available luminaires. Care must be taken to ensure that the correct mounting spigot for the luminaire is selected. Each whip pole is weather-resistant thanks to its hot-dip galvanization and can be coated in RAL or DB colors on request.
As the manufacturer, Fonatsch GmbH is in possession of all necessary quality certificates.



Light point height:

6,0 m - 10,0 m

Design:

  • Made of high quality steel tubes according toDIN 2458 and 2448/1626, cylindrically stepped with conical transitions
  • The stabilizers are supplied disassembled and are easy to attach using the patented mast coupler. This makes it possible to set up the stabilizers precisely at right angles to the road at a later date
  • Flush-mounted mast door with internal devise bar for cable junction box
  • Door lock with M8/A2 stainless steel screw
  • Internal earthing connection with M8/A2 stainless steel screw
  • Double cable entry, 180° offset, 150 x 50 mm
  • Inside and outside hot-dip galvanized in accordance with ÖNORM EN ISO 1461
  • Mast construction according to EN 40-2, CE certified according to DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible
  • Version with flange plate and anchor basket available on request

Application:

Suitable for mounting all commercially available luminaires.

All available models are listed with type designation under "Details":

1-arm whip pole
2-arm whip pole
Extension spigot

Further information will soon be available for download here:

Technical description
Specification texts
Reference images

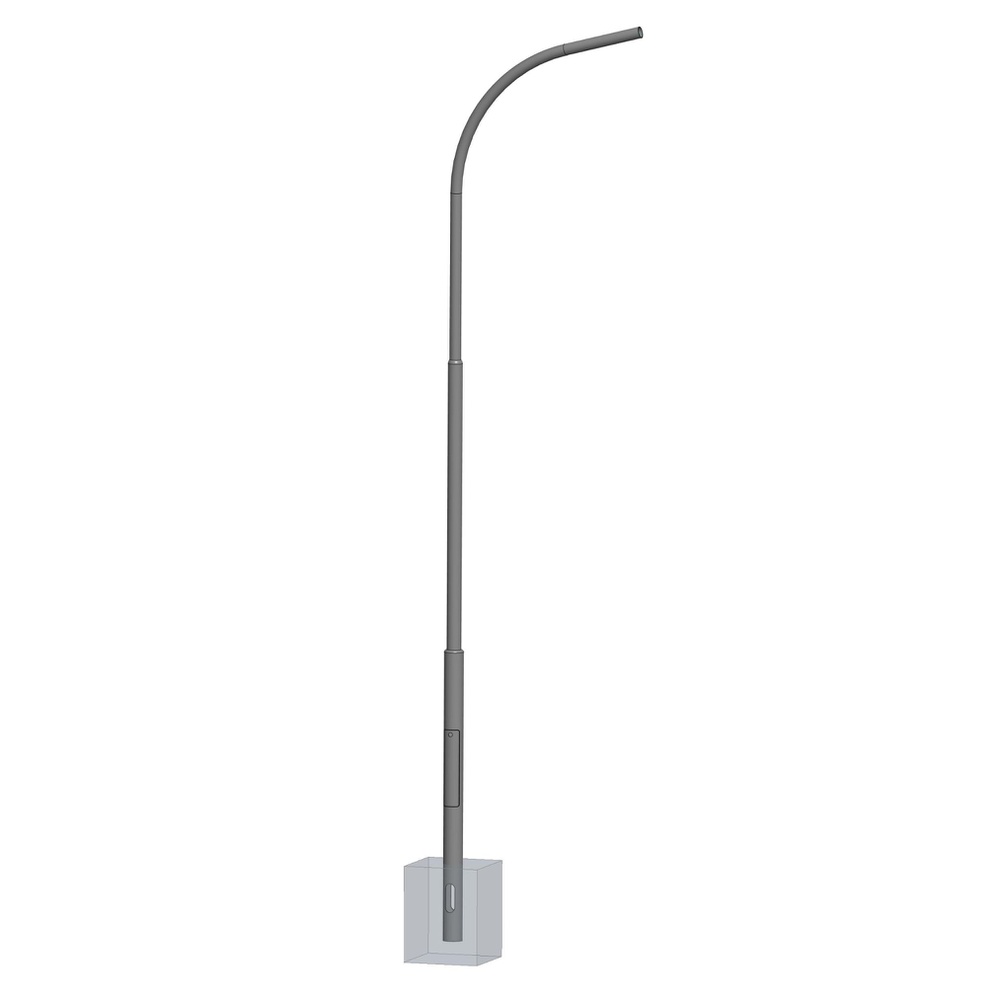

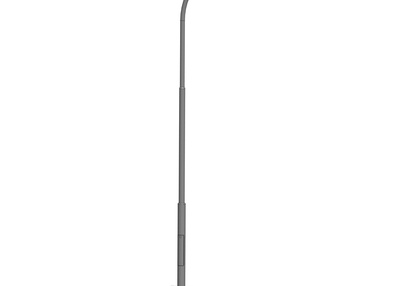

Peitschenmaste 1-armig

Type LPH (m) E (m) D1 (mm) D2 (mm) D3 (mm) Attachment
piece
Weight (kg) Technical drawing
with foundation plan

6012C-1.

6,0

1,0

114

89

60

A, E

53

PDF

6512C-1.

6,5

1,0

114

89

60

A, E

54

PDF

7012C-1.

7,0

1,0

114

89

60

A, E

62

PDF

7512B-1.

7,5

1,0

133

102

60

A, E

65

PDF

8012A-1.

8,0

1,0

133

102

60

A, E

85

PDF

9012A-1.

9,0

1,2

133

89

60

A, E

97

PDF

1012A-1.

10,0

1,5

133

102

60

A, E

121

PDF

Peitschenmaste 2-armig

Type LPH
(m)
E
(m)
D1
(mm)
D2
(mm)
D3 (mm) Attachment
piece
Weight (kg) Technical drawing
with foundation plan

6012C-2.

6512D-2.

7012C-2.

7512B-2.

8012B-2

9012B-2.

1012A-2.

6,0

6,5

7,0

7,5

8,0

9,0

10,0

1,0

1,0

1,0

1,0

1,0

1,5

1,5

114

114

114

133

133

133

133

89

89

89

102

102

89

102

60

60

60

60

60

60

60

A, E

A, E

A, E

A, E

A, E

A, E

A, E

63

64

69

75

95

107

131

PDF

PDF

PDF

PDF

PDF

PDF

PDF

Attachment piece:

Type d2 x I2

A

E

42 x 100 mm

60 x 100 mm
