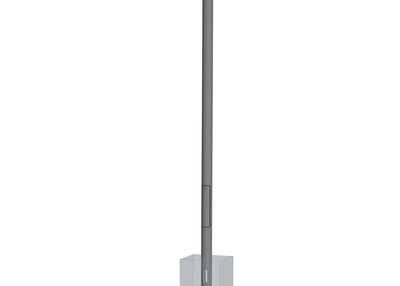

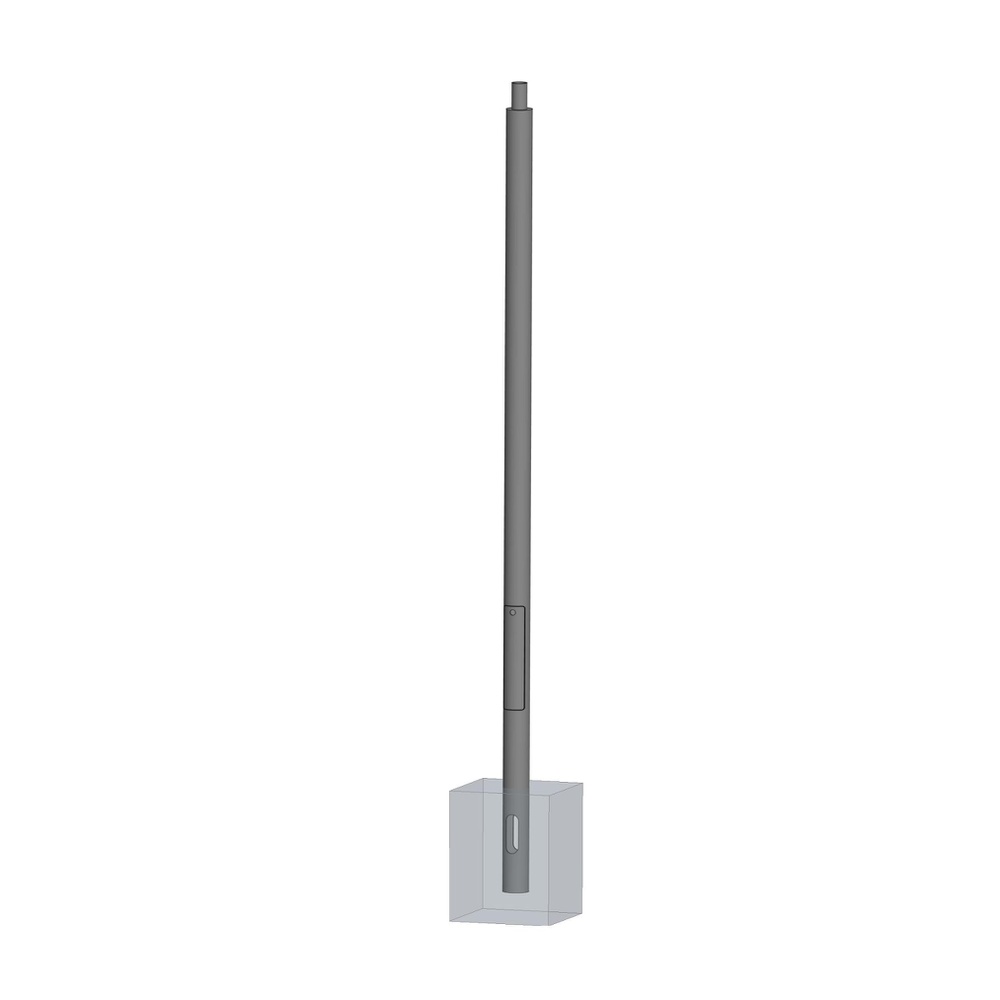

Straight poles | Cylindrical round

This pole is manufactured from high quality cylindrical steel tubes and then hot-dip galvanized inside and outside.

These poles are equipped with a flush-mounted mast door with an internal equipment bridge for the mast fuse box and an internal earthing connection. Each tubular steel pole is individually designed for your installation site and is suitable for almost all commercially available luminaires. Care must be taken to select the correct attachment socket for the luminaire. Each lighting pole is weather-resistant thanks to its hot-dip galvanizing and can be coated in RAL or DB colors on request.

As the manufacturer, Fonatsch GmbH is in possession of all necessary quality certificates.

Light point height:
3,0 m - 5,0 m

Luminaire connection:
Pole spigot optionally 60 or 76 mm and 100 mm long

Design:

  • Made of high quality steel tubes in accordance with DIN 2458 and 2448/1626, cylindrically round
  • Flush-mounted mast door with internal device bridge for cable junction box
  • Door lock with M8/A2 stainless steel screw
  • Internal earthing connection with M8/A2 stainless steel screw
  • Double cable entry, 180° offset, 150 x 50 mm
  • Hot-dip galvanized in a full bath inside and outside, in accordance with ÖNORM EN ISO 1461
  • Pole construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible
  • Version with flange plate and anchor basket possible on request


Application:

Suitable for mounting all commercially available luminaires.

Further information will soon be available for download here:
Technical description
Specification texts
Reference images


Type LPH (m) E (m) D1 (mm) Weight (kg) Technical drawings
incl. foundation

ZY030-114-...

ZY040-114-...

ZY050-114-...

3,0

4,0

5,0

0,6

0,6

0,8

114

114

114

34

43

54

PDF

PDF

PDF
