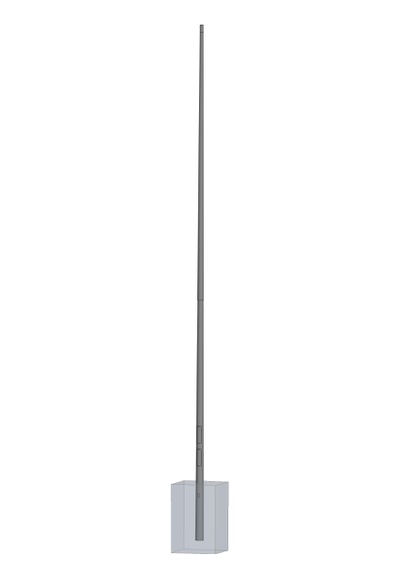

Floodlight mast 16,0 m

Dieser Flutlichtmast wird aus hochwertigen Stahlrohren konisch rund gefertigt und anschließend innen und außen feuerverzinkt.

The floodlight masts are equipped with a flush-mounted mast door with an internal device bridge for the mast fuse box and an internal earthing connection. From a height of 14 metres, conical lightning poles are supplied in two parts and are easy to connect using a push-fit joint. Each tubular steel mast is individually designed for your installation site. This floodlight pole is weather-resistant thanks to its hot-dip galvanisation and can be coated in RAL or DB colors on request.

As the manufacturer, Fonatsch GmbH is in possession of all necessary quality certificates.



Light point high:

16,0 m

Design:

  • Made from high quality conical round tubes

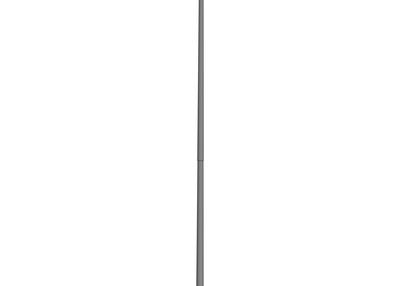

  • This mast is supplied in two parts and is easy to connect using a push-fit joint
  • 1 or 2 flush-mounted mast doors 600 x 155 mm with internal device bridge for cable junction box and ballast
  • Door lock with stainless steel screw M8/A2
  • Internal earth connection with M8/A2 stainless steel screw
  • Double cable entry, 180° offset, 150 x 50 mm
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible
  • Version with flange plate and anchor basket possible on request

Riser system:

These masts can optionally be equipped with climbing rungs and fall protection rope as a climbing system

Application:

For lightning sport facilities and large areas

Static design:

Static design depending on floodlight type, number of floodlights, floodlight inclination and installation location

Type LPH (m) E (m) D1 (mm) D2 (mm) Mast
doors
Door size
(mm)

Weight
(kg)

Technical
drawing
K160-108 16,0 2,0 276 108 1 oder 2 600 x 155 340 PDF
K160-130 16,0 2,0 294 130 1 oder 2 600 x 155 566 PDF
K160-150 16,0 2,0 314 150 1 oder 2 600 x 155 617 PDF
