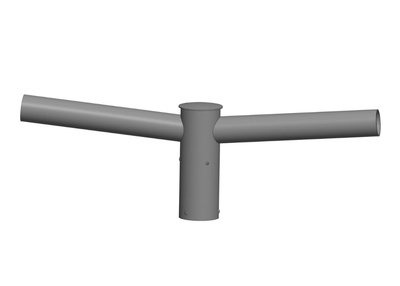

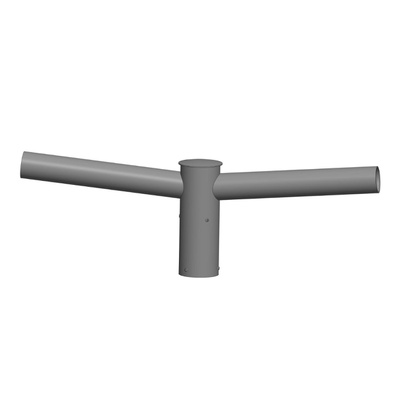

Mast top bracket 2-arm

Mast top and mast top brackets for mounting 2-arm

Design

  • Made of high quality steel tubes
  • Inclination 5°
  • Position of bracket arms at 90°, 120° or 180° to each other, further angle positions on request
  • Suitable for bracket lights
  • Fastened to pole spigot with stainless steel locking screws
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible

Grade position:

For 2-arm brackets, the degree position must also be specified in the type.

e.g.: AS2-60-76-90°, AS2-60-76-120°

Application:

Suitable for mounting on straight lighting poles

See "Details" for all types of brackets and mounting spigots with further technical details.

Mast top

Type Arm bracket (mm) for mast spigot  (mm)

Weight
(kg)

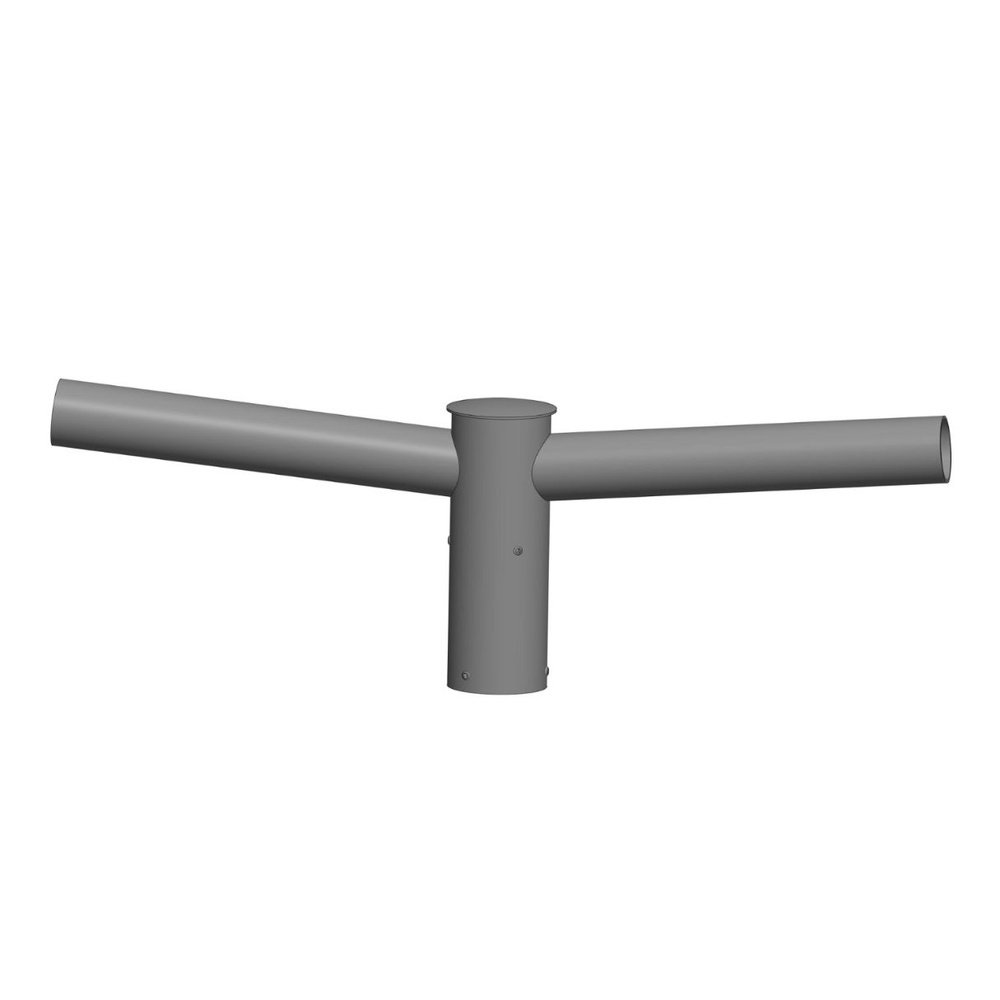

Technical drawing

AS2-60-76

AS2-60-89

2

2

60 x 400

60 x 400

76

89

5,2

5,5

90° 120° 180°

90° 120° 180°

Mast top bracket

Type Projection
(mm)
Arm for mast spigot
(mm)
Extension spigot Weight
(kg)
Technical drawing

AS2-76-05.

AS2-76-10.

AS2-76-15.

500

1000

1500

2

2

2

76

76

76

A, E

A, E

A, E

6,7

10,6

17,2

90° 120° 180°

90° 120° 180°

90° 120° 180°

Extension spigot

Type d2 x I2

A

E

42 x 100 mm

60 x 100 mm
