Wall bracket for attachment lights

For mounting post-top lighting

Design::

  • Made of high quality steel tubes
  • Suitable for surface mounted luminaires
  • Flange plate for wall mounting
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating possible in RAL and DB colors of your choice possible

Application:

For mounting post-top lightning. Care should be taken to select the correct mounting bracket

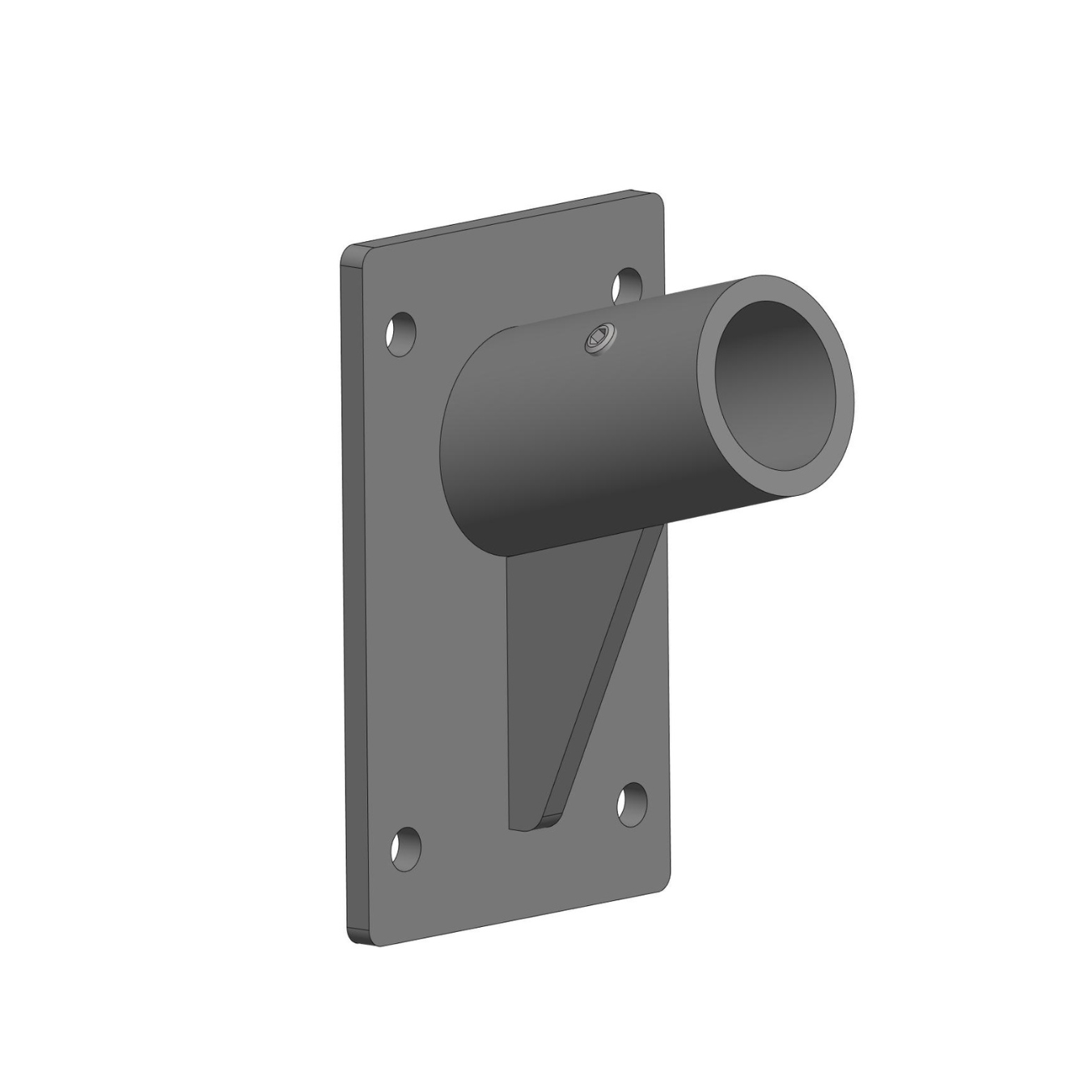

Wall bracket for attachment lights (without support spigot)

Type Version Weight (kg) Technical drawing

W1

E1

for wall mounting

for corner mounting

3,0

4,0

PDF

PDF

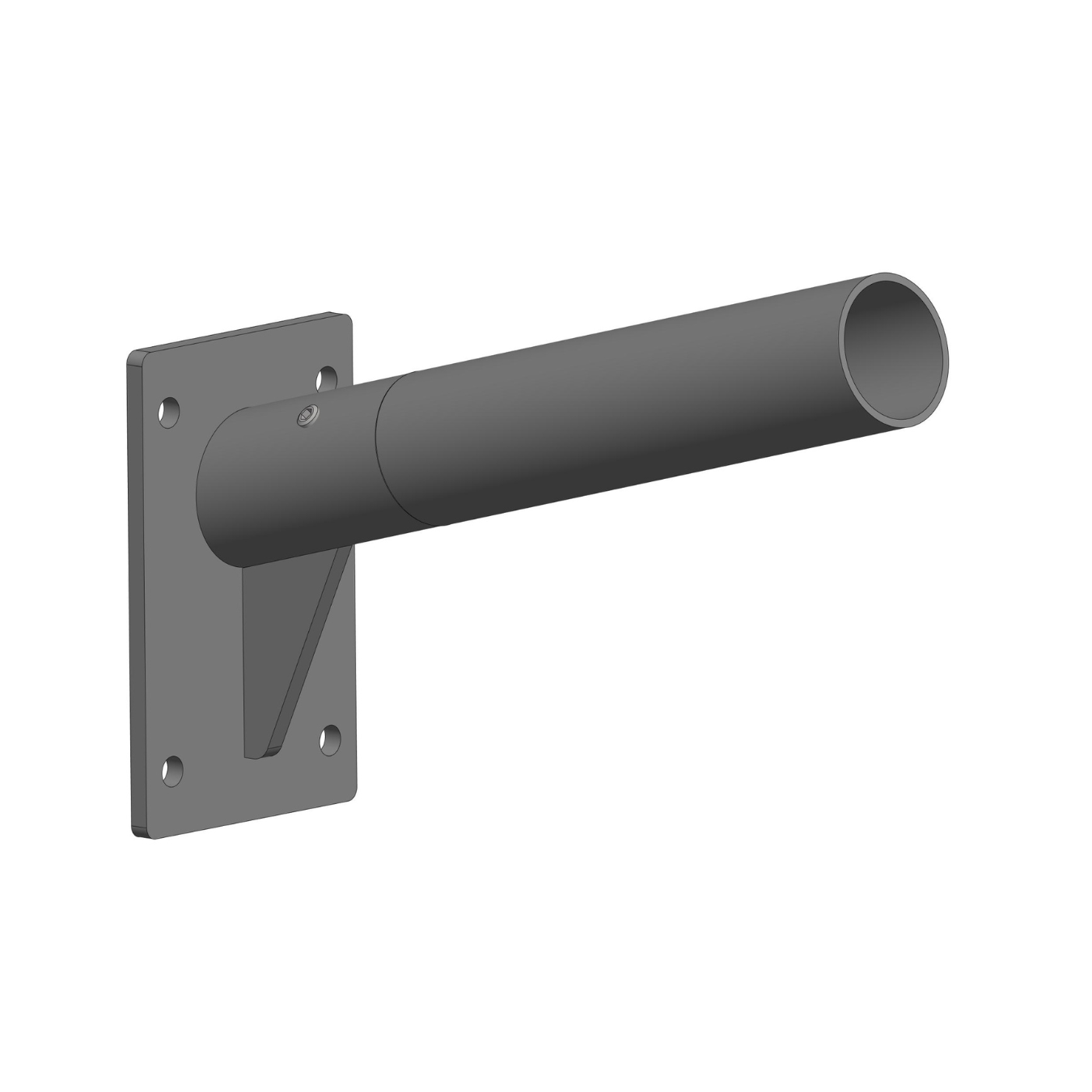

Support bracket for attachment lights

Type d x I (mm) Weight (kg) Technical drawing

TS-A

TS-C

TS-D

TS-E

TS-F

TS-G

42 x 100

42 x 250

42 x 400

60 x 100

60 x 250

60 x 400

0,8

1,3

2,3

1,2

1,4

2,4

PDF

PDF

PDF

PDF

PDF

PDF
