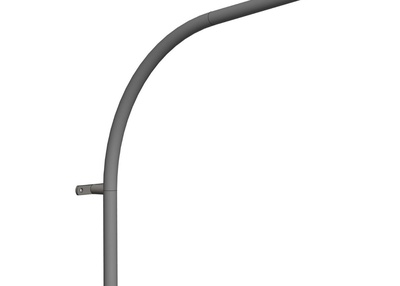

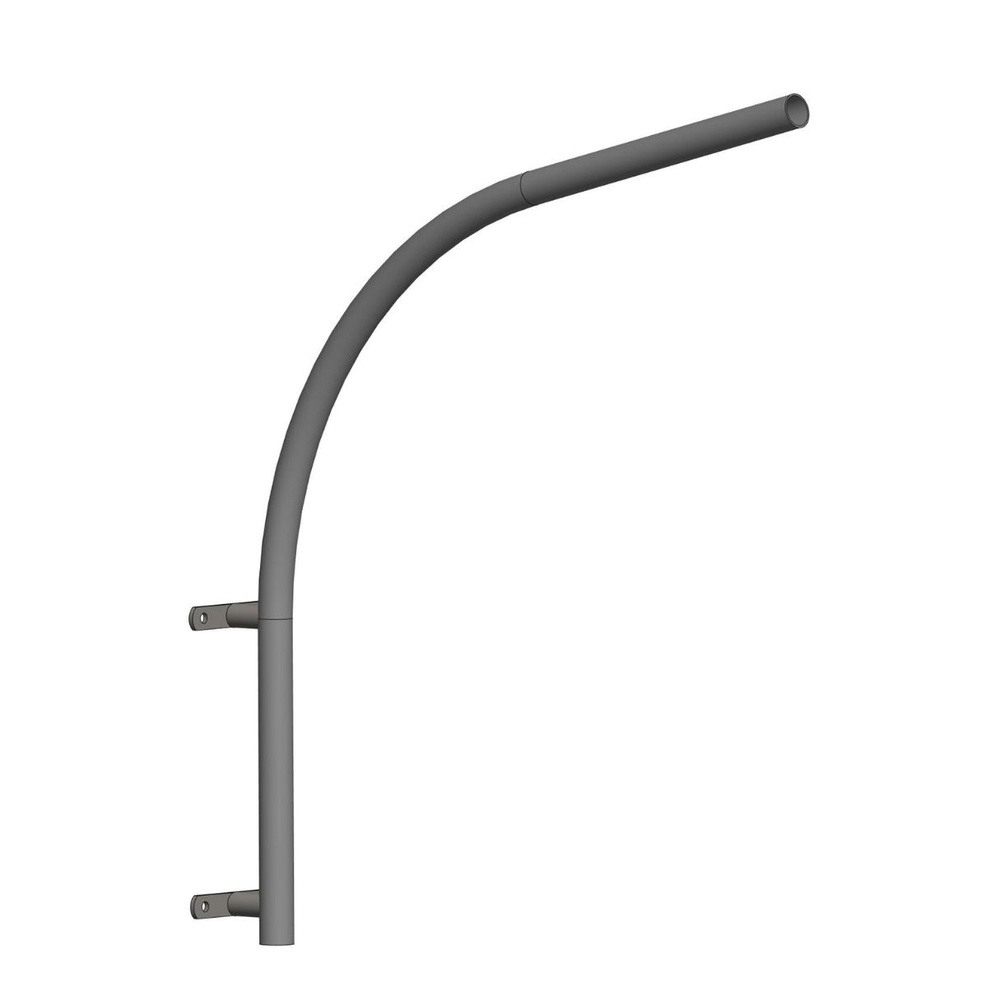

Whip wall bracket with lugs

Projection 1.2 and 1.5 m - For mounting post-top lighting

Design:

  • Made of high quality steel tubes
  • Suitable for surface mounted luminaires
  • Lugs for wall mounting
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating possible in RAL and DB colors of your choice

Application:

For mounting post-top lightning. Care should be taken to select the correct attachment spigot

Whip wall bracket with lugs

Type Projection (m) D1 (mm) Weight (kg) Technical drawing
1242-1A. 1,2 42 12

PDF

1260-1E. 1,2 60 14 PDF
1542-1A. 1,5 42 13 PDF
1560-1E. 1,5 60 16 PDF
