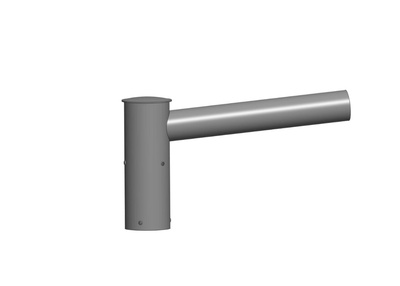

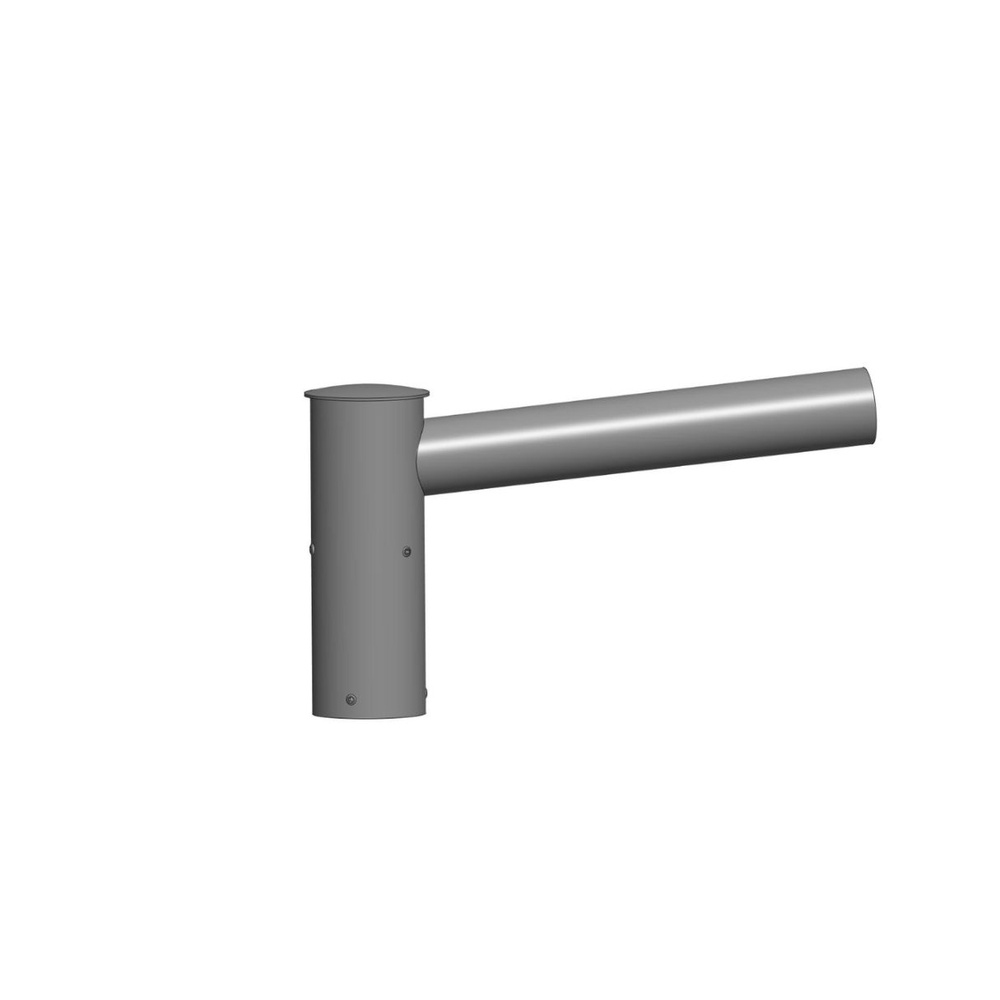

Mast top bracket aluminium

Mast top and mast top brackets made of aluminium

Design:

  • Made of high quality aluminium tubes
  • Inclination 5°
  • Position of bracket arms at  90°, 120° or 180° to each other, further angle positions on request
  • Suitable for bracket lights
  • Fixed to pole spigot with stainless steel locking screws
  • Anodised in A6/C0
  • Construction in accordance with EN 40-6, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible

Grade position:

For 2-armed brackets, the degree position must also be specified in the type
e.g.: ALAS2-60-76-90°, ALAS2-60-76-120°

Application:

Suitable for mounting on straight lightning poles

See "Details" for all types of brackets and spigots with further technical details.



Type Projection
(mm)
Arm for mast spigot (mm) Extension spigot Weight (kg) Technical drawing

ALAS1-76-05E

ALAS1-76-10E

ALAS2-76-05E

500

1000

500

1

1

2

76

76

76

Ø 60 x 100

Ø 60 x 100

Ø 60 x 100

2,2

2,6

3,0

PDF

PDF

90° 120° 180°

ALAS2-76-10E

1000

2

76

Ø 60 x 100

4,0

90° 120° 180°
